Low-Melting Thermal Interface Material Phase Change Materials Thermal Pad For Electric Motor Control Equipment

Detalhes do produto:

Place of Origin:	China
Marca:	Ziitek
Certificação:	RoHS
Model Number:	TIC800D

Condições de Pagamento e Envio:

Minimum Order Quantity:	1000pcs
Preço:	0.1-10 USD/PCS
Packaging Details:	241312cm cartons
Delivery Time:	3-6 work days
Payment Terms:	T/T
Supply Ability:	1000000 pcs/month

Contato

Descrição de produto detalhada

Name:	Low-Melting Thermal Interface Material Phase Change Materials Thermal Pad For Electric Motor Control Equipment	Applicatoin:	Electric Motor Control Equipment
Color:	Light Amber	Keyword:	Phase Change Materials
Feature:	Low thermal resistant with high voltage isolation	Phase Change Softening Temperature:	50~60℃
Recommended use temp(℃）:	-50~130℃	Total Thickness:	0.005"/0.127mm

Low-Melting Thermal Interface Material Phase Change Materials Thermal Pad For Electric Motor Control Equipment

With professional R&D capabilities and many year experiences in thermal interface material industry, Ziitek company own many unique formulations which are our core technologies and advantages. Our goal is to provide quality & competitive products to our customers worldwide aiming for long-term business cooperation.

TIC^®800D Series is a high thermal conductivity and high dielectric constant insulating pad. lt consists of a polyimide film substrate coated with a low-melting-point phase change material filled with ceramic blend. At 50 C, the material surface begins to soften and flow, effectively filling microscopic surface irregularities between the heat sink and the integrated circuit board, thereby reducing thermal resistance and enhancing heat transfer efficiency.

Features
> Highly compliant surfacewith high thermal conductivity

> High dielectric strength
> Low thermal resistance with highvoltage isolation
> Resistant to tears and punctures

Applications
> Power semiconductors, MOSFETs,and IGBTs
> Audio and video components

> Automotive control devices

> Electric motor control equipment

Typical Properties of TIC^®800D Series
Property	Value	Test Method
Color	Light amber	Visual
Composite Thickness	0.004"/0.102mm	ASTM D374
Kapton^® MT Thickness	0.001"/0.025mm	ASTM D374
Total Thickness	0.005"/0.127mm	ASTM D374
Tensile Strength (Mpa)	17	ASTM D412
Recommended Use Temp(℃)	-50~130	Ziitek Test Method
Phase Change Softening temp(℃)	50~60	****
Electrical
Dielectric Breakdown Voltage(VAC)	5000	ASTM D149
Dielectric Constant @1MHz	1.8	ASTM D150
Volume Resistivity (Ohm-m)	1.0*10¹²	ASTM D257
Thermal Conductivity
Thermal Conductivity	1.6 W/mK	ASTM D5470
Thermal Impedance (℃-in²/W) @50psi	0.16	ASTM D5470

Product Specification

Standard Thickness:
0.005" (0.127 mm). Individual die-cut shapes and custom thickness can be supplied. Please contact us for confirming.

Standard sizes:
10"x 100'(254 mm x 30 m), individual die cut shapes can be supplied.

Peressure Sensitive Adhesive:
Not applicable to TIC800D series products.

Reinforcement:
TIC800D series is reinforced with polyimide film.

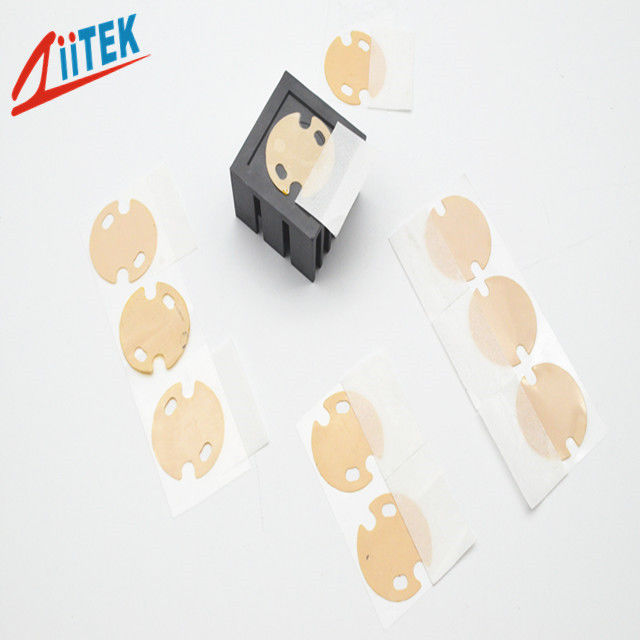

Low-Melting Thermal Interface Material Phase Change Materials Thermal Pad For Electric Motor Control Equipment 0
