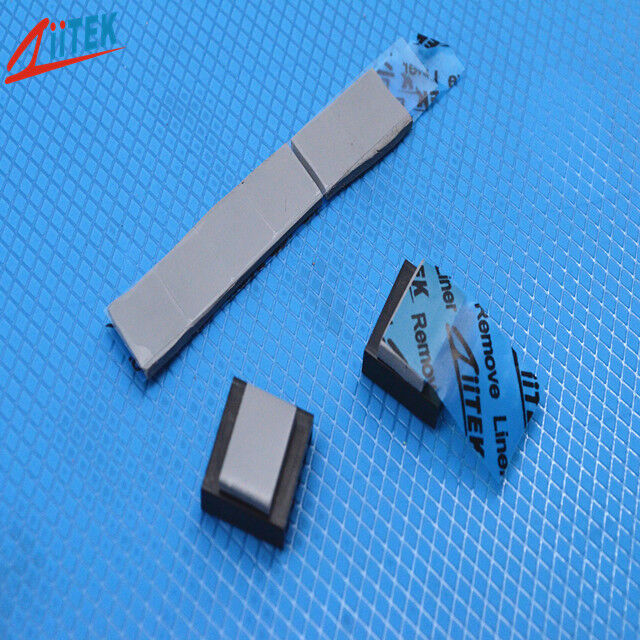

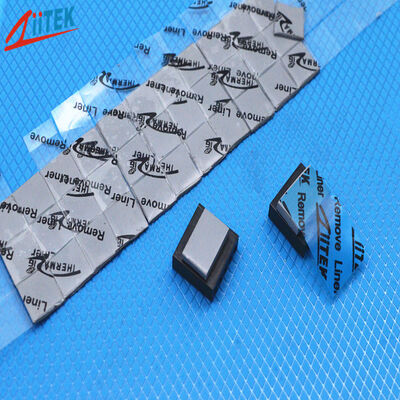

15.0W/mK Thermal Conductive Silicone Heat Sink Thermal Pad With Exceptional Thermal Conductivity Rating For AI Processors And Servers

15.0W/mK Thermal Conductive Silicone Heat Sink Thermal Pad With Exceptional Thermal Conductivity Rating For AI Processors And Servers

Detalhes do produto:
Lugar de origem: China
Marca: Ziitek
Certificação: UL and RoHs
Número do modelo: TIF800HS
Documento: TIF800HS_Data Sheet.pdf
Condições de Pagamento e Envio:
Quantidade de ordem mínima: 1000 peças
Preço: 0.1-10 USD/PCS
Detalhes da embalagem: caixa de 24*13*12cm
Tempo de entrega: 3-8 dias úteis
Termos de pagamento: T/T
Habilidade da fonte: 100.000 unidades/mês
Contato
Descrição de produto detalhada
Nome dos produtos: almofada térmica condutora térmica do dissipador de calor do silicone 15.0W/mK com avaliação excepci condutor térmico: 15,0 W/mK
Dureza: 45 costa 00 amostra: Amostra grátis
Palavras-chave: Almofada térmica Cor: Cinza
Aplicativo: Para processadores e servidores de IA Grossura: 0,030"~0,200"/(0,75~5,0mm)
Densidade: 3,3g/cm³ Construção: Elastômero de silicone preenchido com cerâmica

15.0W/mK Thermal Conductive Silicone Heat Sink Thermal Pad With Exceptional Thermal Conductivity Rating For AI Processors And Servers

Products description


The TIF®800HS Seriesis a high-end compressible thermal pad designed to meet top-level cooling requirements while maintaining excellnt assembly workmanship. Through an innovative material formulation, it successfully achieves an ideal combination of ultra-high thermal conductivity and moderate hardness. This unique performance balance allows it to efficientlyhandle the cooling challenges posed by ultra-high heat flux densities,while also providing good mechanical strength and compressibility, making it easy to process and install. It offers a reliable interface material solution with both outstanding thermal performance and high reliability for high-power-density electronic devices.


Features

> Good thermal conductive 15.0W/mK
> Good softness and fillability
> Self-adhesive without the need for additional surface adhesives
> Good insulation performance
> RoHS compliant
> UL recognized

Applications

> Photovoltaic
> Signal communication
> New energy vehicle
> Motherboard chip
> Radiator
> AI Processors AI Servers
> Semiconductor Packaging
> Low-Altitude Aircraft
> Optical Communication Products
> 5G Base Stations
> CPU
> Display card
> Mainboard/mother board
> Notebook
> Power supply

Key attributes


Typical Properties of TIF®800HS Series
Property Value Test method
Color Gray Visual
Construction & Compostion Ceramic filled silicone elastomer ******
Density(g/cm³) 3.3 ASTM D792
Thickness Range(inch/mm) 0.030 0.040~0.200 ASTM D374
0.75 1.00~5.00
Hardness (Shroe 00) 45 45 ASTM 2240
Recommended Operating Temperature -40 to 200℃ ******
Breakdown Voltage(V/mm) ≥5500 ASTM D149
Dielectric Constant@ 1MHz 9.0 ASTM D150
Volume Resistivity >1.0X1012 Ohm-meter ASTM D257
Flame rating V-0 UL 94 (E331100)
Thermal conductivity 15.0 W/m-K ASTM D5470
15.0 W/m-K ISO22007



Product Specifications


Standard Thickness: 0.030" (0.75mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size: 16"X16" (406 mmX406 mm)

The TIF® series is available in custom shapes and various forms.
For other thicknesses or more information,please contact us.

15.0W/mK Thermal Conductive Silicone Heat Sink Thermal Pad With Exceptional Thermal Conductivity Rating For AI Processors And Servers 0


Packaging Details & Lead time


The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized


Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated
