3.0W/mK Thermally Conductive Silicone Thermal Pad With Good Softness And Fillability For AI Processors And Electronics Cooling

3.0W/mK Thermally Conductive Silicone Thermal Pad With Good Softness And Fillability For AI Processors And Electronics Cooling

Detalhes do produto:
Lugar de origem: China
Marca: Ziitek
Certificação: UL and RoHs
Número do modelo: TIF100-30-06S
Documento: TIF100-30-06S_Data Sheet.pdf
Condições de Pagamento e Envio:
Quantidade de ordem mínima: 1000 peças
Preço: 0.1-10 USD/PCS
Detalhes da embalagem: caixa de 24*13*12cm
Tempo de entrega: 3-8 dias úteis
Termos de pagamento: T/T
Habilidade da fonte: 100.000 unidades/mês
Contato
Descrição de produto detalhada
Nome dos produtos: Almofada térmica de silicone 3.0W/mK termicamente condutora com boa suavidade e capacidade de preenc condutor térmico: 3.0W/mK
Dureza: 65/45 Costa 00 amostra: Amostra grátis
Cor: branco Grossura: 0,010"~0,200"/(0,25~5,0mm)
Densidade: 30,0 g/cm3 Palavras-chave: Almofada Térmica de Silicone
Construção: Elastômero de silicone preenchido com cerâmica Aplicativo: Processadores AI e resfriamento eletrônico

3.0W/mK Thermally Conductive Silicone Thermal Pad With Good Softness And Fillability For AI Processors And Electronics Cooling

Products description


The TIF®100-30-06S Series is awell-balanced,general-purpose thermal pad.It offers high thermal conductivity and moderate hardness. This balanced design provides both excellent suface conformity and superior ease of use, making it capable of effectively transferring heat and providing basic physical protection for a wide range of electronic components. It is an ideal choice for addressing medium to high power heat dissipation needs, achieving the best balance between cost and performance.


Features

> Good thermal conductive 3.0W/mK
> Good softness and fillability
> Self-adhesive without the need for additional surface adhesives
> Good insulation performance

Applications

> Photovoltaic
> Signal communication
> New energy vehicle
> Motherboard chip
> Radiator
> AI Processors AI Servers
> Semiconductor Packaging
> Low-Altitude Aircraft
> Optical Communication Products
> 5G Base Stations
> Electric vehicle batteries
> Computer CPU/GPU Cooling
> New energy vehicle power systems

Key attributes


Typical Properties of TIF®100-30-06S Series
Property Value Test method
Color White Visual
Construction & Compostion Ceramic filled silicone elastomer ******
Density(g/cm³) 3.0 ASTM D792
Thickness Range(inch/mm) 0.010~0.020 0.030~0.200 ASTM D374
(0.25~0.50) (0.75~5.0)
Hardness (Shroe 00) 65 45 ASTM 2240
Recommended Operating Temperature -40 to 200℃ ******
Breakdown Voltage(V/mm) ≥5500 ASTM D149
Dielectric Constant@ 1MHz 5.2 ASTM D150
Volume Resistivity >1.0X1012 Ohm-meter ASTM D257
Flame rating V-0 UL 94 (E331100)
Thermal conductivity 3.0 W/m-K ASTM D5470
3.0 W/m-K ISO22007



Product Specifications


Standard Thickness: 0.010" (0.25 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size: 16"X16" (406 mmX406 mm)

Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).

The TIF® series is available in customshapes and various forms.
For other thicknesses or more information,please contact us.

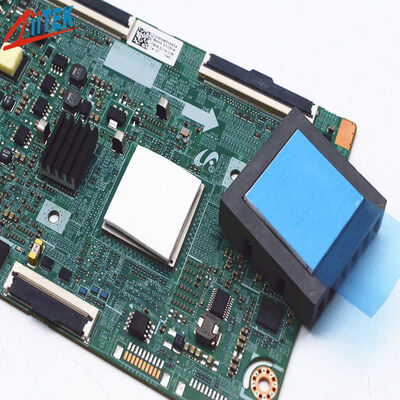

3.0W/mK Thermally Conductive Silicone Thermal Pad With Good Softness And Fillability For AI Processors And Electronics Cooling 0


Packaging Details & Lead time


The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized


Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated

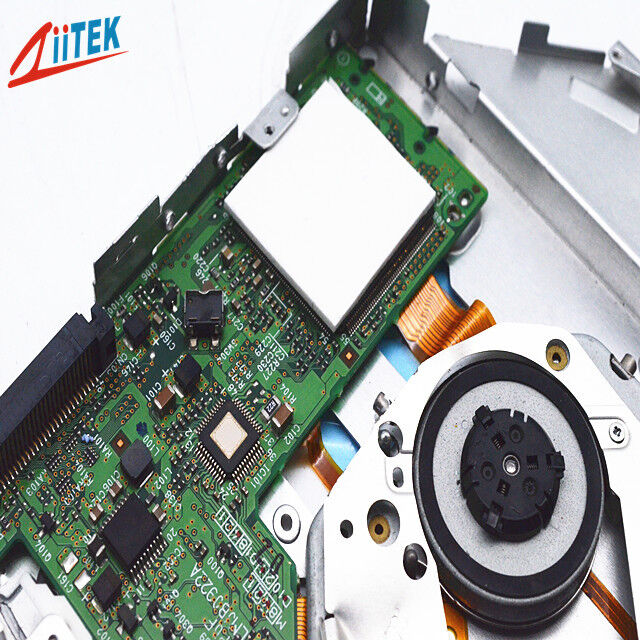

Thermal Gap Filler Offering Superior Softness and Thermal Conductivity to Enhance Cooling and Reliability of Electronic Assemblies 1
