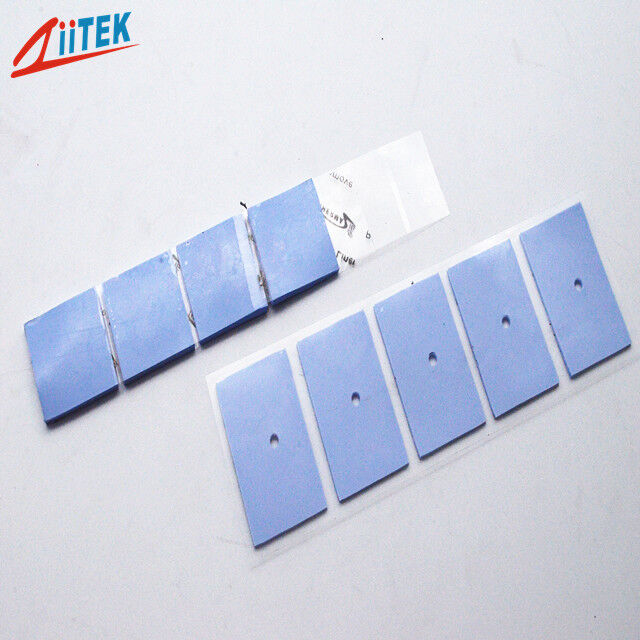

Blue 4.0W Thermally Conductive Gap Filler Pads For AI Processors AI Servers
Company Profile
Ziitek Technology Company is dedicated to providing a comprehensive range of thermal management products and services to meet various demand scenarios. Ziitek Technology offers prompt and flexible services. Our thermal conductive materials are widely used in the fields of new energy, electronic appliances, transportation, industry, military, healthcare, communication, etc. Ziitek has obtained ISO9001, ISO14001 and IECQ certifications, which indicate our commitment to producing high-quality products and adopting excellent management methods. Our products comply with RoHS, REACH and UL standards, ensuring safety and reliability.
The TIF®100-40-05U Series is an ultra-soft thermal interface material designed specifically to protect precision components that are extremely sensitive to mechanical stress. This product combineshigh thermal conductivity with exceptional gel-level softness, achieving a perfectly low-stressfit.It issuitablefor addressing issues such as large tolerances, uneven surfaces, and the susceptibility of precision components to mechanical damage in high-precision assemblies.
Features
> Good thermal conductive: 4.0W/mK
> Moldability for complex parts
> Naturally tacky needing no further adhesive coating
> Soft and Compressible for low stress applications
> High tack surface reduces contact resistance
> RoHS compliant
> UL recognized
Applications
> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)
> Signal communication
> New energy vehicle
> Motherboard chip
> Radiator
> AI Processors AI Servers
| Typical Properties of TIF®100-40-05U Series |
| Property |
Value |
Test method |
| Color |
Blue |
Visual |
| Construction & Compostion |
Ceramic filled silicone elastomer |
- |
| Density(g/cm³) |
3.1 |
ASTM D792 |
| Thickness Range(inch/mm) |
0.010~0.020 |
0.030~0.200 |
ASTM D374 |
| (0.25~0.50) |
(0.75~5.00) |
| Hardness |
65 Shore 00 |
27 Shore 00 |
ASTM 2240 |
| Recommended Operating Temperature |
-40 to 200℃ |
- |
| Breakdown Voltage(V/mm) |
≥5500 |
ASTM D149 |
| Dielectric Constant |
7.0 MHz |
ASTM D150 |
| Volume Resistivity |
＞1.0X1012 Ohm-meter |
ASTM D257 |
| Flame rating |
V-0 |
UL 94 (E331100) |
| Thermal conductivity |
4.0 W/m-K |
ASTM D5470 |
| 4.0 W/m-K |
ISO22007 |
Product Specifications
Standard Thickness:0.010" (0.25 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size: 16"X 16" (406 mm×406 mm)
Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).
The TIF® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.
