| Lugar de origem: | China |
| Marca: | Ziitek |
| Certificação: | UL & RoHS |
| Número do modelo: | TIF100-30-11E |
| Quantidade de ordem mínima: | 1000 unidades |
|---|---|
| Preço: | 0.1-10 USD/pcs |
| Detalhes da embalagem: | caixas de 24*13*12cm |
| Tempo de entrega: | 3-5 dias úteis |
| Termos de pagamento: | T/T |
| Habilidade da fonte: | 1000000 PCs/mês |
| Nome dos produtos: | Almofada térmica autoadesiva de alta condutividade 3W com certificação UL e RoHs para resfriamento d | Aplicativo: | Resfriamento de CPU/GPU de computador |
|---|---|---|---|
| Grossura: | Disponível em espessuras variadas | Gravidade Específica: | 30,0 g/cm3 |
| Tensão de ruptura (V/mm)): | ≥5500 | Condutividade térmica: | 3.0W/m-K |
| Cor: | Cinza escuro | Palavras-chave: | Pad Gap térmico |
| Temperatura operacional: | -40 ~ 200 ℃ |

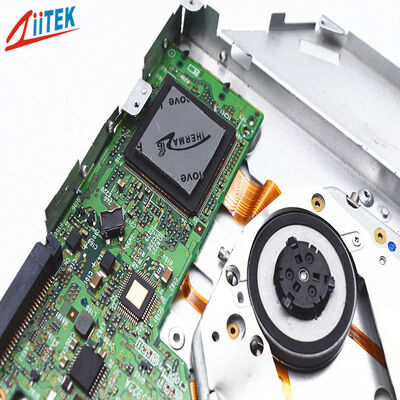

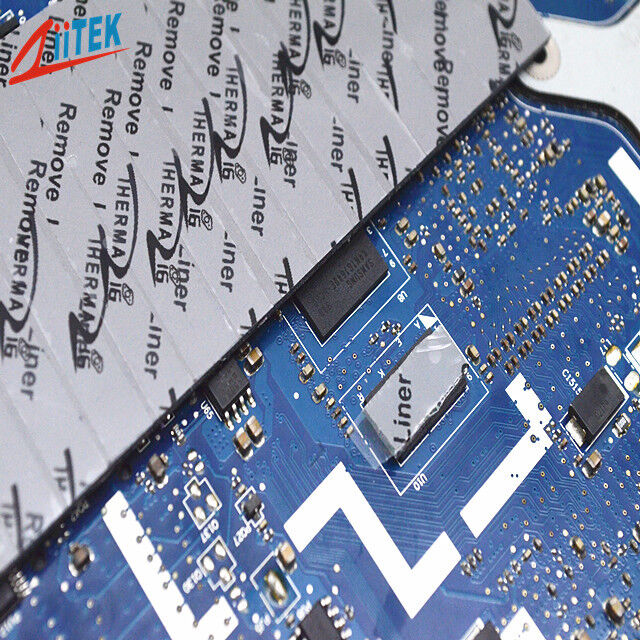

UL And RoHs Certificated High Conductivity 3W Self Adhesive Thermal Gap Pad For Computer CPU/GPU Cooling
Company Profile
Product introduction
TIF®100-30-11E Series is a wellbalanced, general-purpose thermal pad. It offers high thermal conductivity and moderate hardness. This balanced design provides both excellent surface conformity and superior ease of use, making it capable of effectively transferring heat and providing basic physical protection for a wide range of electronic components. It is an ideal choice for addressing medium to high power heat dissipation needs, achieving the best balance between cost and performance.
Features
> High thermal conductivity: 3.0W/mK
> Good softness and fillability
> Self-adhesive without the need for additional surface adhesives
> Good insulation performance
Applications
> Power tools
> Network communication products
> Electric vehicle batteries
> Computer CPU/GPU Cooling
> New energy vehicle power systems
> Signal communication
> New energy vehicle
> Motherboard chip
> Radiator
> AI Processors AI Servers
> Photovoltaic
> Signal communication
> New energy vehicle
> Motherboard chip
> Radiator
| Typical Properties of TIF®100-30-11E Series | |||
| Property | Value | Test method | |
| Color | Dark Gray | Visual | |
| Construction & Compostion | Ceramic filled silicone elastomer | ****** | |
| Density(g/cm³) | 3.0 | ASTM D792 | |
| Thickness Range(inch/mm) | 0.010~0.020 | 0.030~0.200 | ASTM D374 |
| (0.25~0.50) | (0.75~5.00) | ||
| Hardness | 65 Shore 00 | 35 Shore 00 | ASTM 2240 |
| Continuos Use Temp | -40 to 200℃ | ****** | |
| Breakdown Voltage(V/mm) | ≥5500 | ASTM D149 | |
| Dielectric Constant | 7.0 MHz | ASTM D150 | |
| Volume Resistivity | >1.0X1012 Ohm-meter | ASTM D257 | |
| Thermal Conductivity (W/m-K) | 3.0 | ASTM D5470 | |
| 3.0 | ISO22007 | ||
| Fire rating | V-0 | UL 94 (E331100) | |
Product Specifications
Standard Thickness:0.010" (0.25 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size:16"X16" (406 mmX406 mm)
Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).
The TIF® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.
![]()
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
Why Choose us ?
1.Our value message is'' Do it right the First time, total quality control''.
2.Our core competencies is thermal conductive interface materials.
3.Competitive advantage products.
4.Condidentiality agreement Bussiness Secrect Contract.
5.Free sample offer.
6.Quality assurance contract.
FAQ:
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China.
Q: How do I place an order?
A:1. Click the "Sent messages" button to continue with the process.
2. Fill out the message form by entering a subject line, and message to us.
This message should include any questions you might have about the products as well as your purchase requests.
3. Click the "Send" button when you are finished to complete the process and send your message to us
4. We will reply you as soon as possible with Email or online
Q: How do I request customized samples?
A: To request samples, you can leave us message on website, or just contact us by send email or call us.
Pessoa de Contato: Dana Dai
Telefone: +86 18153789196
