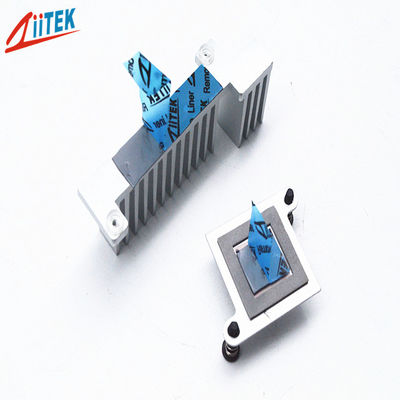

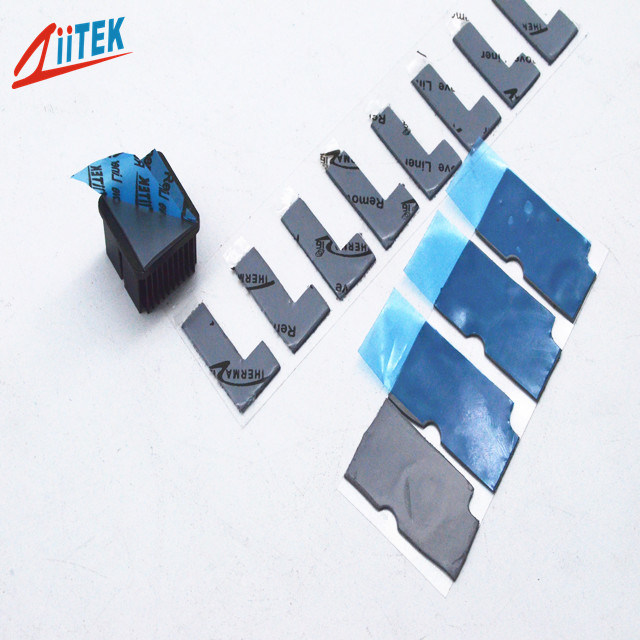

LTD Thermal Pad 5.0W Thermal Conductive Pad Customized Silicon Thermal Insulation Sheet Thermal Pads For CPU

LTD Thermal Pad 5.0W Thermal Conductive Pad Customized Silicon Thermal Insulation Sheet Thermal Pads For CPU

Detalhes do produto:
Lugar de origem: CHINA
Marca: Ziitek
Certificação: UL & RoHS
Número do modelo: Série TIF500-50-11ES
Condições de Pagamento e Envio:
Quantidade de ordem mínima: 1000pcs
Preço: 0.1-10 USD/PCS
Detalhes da embalagem: 24*13*12cm de caixas
Tempo de entrega: 3-5 dias de trabalho
Termos de pagamento: T/T.
Habilidade da fonte: 1000000 PCs/mês
Contato
Descrição de produto detalhada
Nome dos produtos: Almofada térmica LTD 5.0W almofada condutora térmica personalizada folha de isolamento térmico de si Faixa de espessura: 0,04 polegadas ~ 0,20 polegadas/(1,0 mm) ~ 5,0 mm)
Condutividade térmica: 5.0W/m-k Amostra: Amostra grátis
Tensão de quebra dielétrica: > 5500 Vac Palavras -chave: Almofadas Térmicas LED
Classificação de incêndio: 94 V0 Cor: Cinza
Constante dielétrica: 3.8MHz Aplicação: Dissipação de calor da CPU LED

LTD Thermal Pad 5.0W Thermal Conductive Pad Customized Silicon Thermal Insulation Sheet Thermal Pads For CPU



Company Profile



Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.



Ziitek TIF®500-50-11ES is a thermal pad specifically designed to address the most demanding thermal challenges and highly sensitive mechanical stress environments. Combining exceptional thermal conductivity with near-fluid softness, it ensures perfect filling of contact interfaces even under ultra-low installation pressure, completely eliminating air thermal resistance. This delivers an outstanding thermal management solution and physical protection for the most precise and high-heat-flux-density electronic components.



Features


> Good thermal conductive: 1.5W/mK
> Moldability for complex parts
> Soft and compressible for low stress applications
> Naturally tacky needing no further adhesive coating
> Available in varies thicknesses
> Broad range of hardnesses available


Applications


> Display card
> Mainboard/mother board
> Notebook
> Power supply
> Heat pipe thermal solutions
> Memory Modules
> Mass storage devices
> Automotive electronics
> Set top boxes
> Audio and video components
> IT infrastructure
> GPS navigation and other portable devices
> CD-Rom, DVD-Rom cooling
> LED Power Supply



Typical Properties of TIF®500-50-11ES Series
Property Value Test method
Color Gray Visual
Construction &Compostion Ceramic filled silicone elastomer ******
Thickness range(inch/mm)

0.02"~0.03"/

(0.50mm)~(0.75mm)

0.04"~0.20"/

(1.0mm)~(5.0mm)

ASTM D374
Density 3.3g/cm³ ASTM D792
Hardness 10 Shore 00 ASTM 2240
Continuos Use Temp -45 to 200℃ ******
Dielectric Breakdown Voltage > 5500 VAC ASTM D149
Dielectric Constant 3.8 MHz ASTM D150
Volume Resistivity >1.0 X1012 Ohm-meter ASTM D257
Flame rating 94 V0 UL E331100
Thermal conductivity 5.0 W/m-K ASTM D5470



Product Specification


Standard Thickness: 0.02"(0.50 mm)~0.20” (5.00 mm) with increments of 0.01 inch (0.25 mm).
Standard Size: 16" ×16" (406 mm×406 mm).


Component Codes:


Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment), DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).
The TIFseriesis available in custom shapes and various forms.For other thicknessesormore
information, please contact us.

LTD Thermal Pad 5.0W Thermal Conductive Pad Customized Silicon Thermal Insulation Sheet Thermal Pads For CPU 0

Packaging Details & Lead time



The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized



Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated



Why Choose us ?



1.Our value message is'' Do it right the First time, total quality control''.

2.Our core competencies is thermal conductive interface materials.

3.Competitive advantage products.

4.Condidentiality agreement Bussiness Secrect Contract.

5.Free sample offer.

6.Quality assurance contract.



FAQ:



Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.



Q: How to find a right thermal conductivity for my applications

A: It depends on the watts of power source , ability of heat dissipation. Please tell us your detailed applications and the power, so we can recommend most suitable thermal conductive materials.



Q: Do you accept custom orders ?

A:Yes , welcome to custom orders. Our custom elements including dimension , shape , color and coated on side or two sides adhesive or coated fiberglass. If you want to place a custom order , pls kindly offer a drawing or leave your custom order information .
