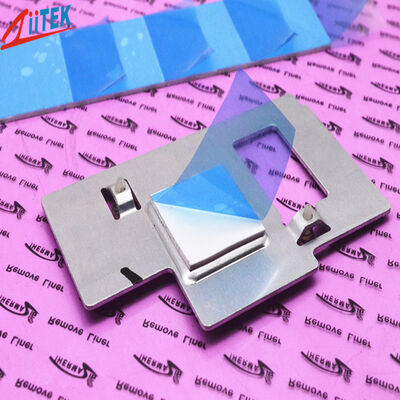

Name: Ultra Low Volatility Of Siloxane Silicone Thermally Conductive Gap Filler Pads For Central Control Screen
Brand: Dongguan Ziitek Electronical Material and Technology Ltd.
SKU: TIF100L 2050-06
Price: 4.10 USD
Availability: InStock

Casa Produtos Almofada térmica do processador central

Ultra Low Volatility Of Siloxane Silicone Thermally Conductive Gap Filler Pads For Central Control Screen

Detalhes do produto:

Lugar de origem:	China
Marca:	Ziitek
Certificação:	UL
Número do modelo:	TIF100L 2050-06

Condições de Pagamento e Envio:

Quantidade de ordem mínima:	1000 peças
Preço:	0.1-10 USD/PCS
Detalhes da embalagem:	caixa de 241312cm
Tempo de entrega:	3-8 dias úteis
Termos de pagamento:	T/T
Habilidade da fonte:	100.000 unidades/mês

Contato

Descrição de produto detalhada

Nome dos produtos:	Volatilidade ultra baixa de almofadas de enchimento de lacunas termicamente condutoras de silicone s	Construção:	Elastômero de silicone preenchido com cerâmica
Dureza:	65/50 Costa 00	Cor:	branco
Aplicativo:	Ecrã de controlo central	condutor térmico:	2,0 W/mK
Grossura:	0,010 "(0,25 mm) ~ 0,200" (5,0 mm)	Densidade:	³ de 2.9g/cm
Palavras-chave:	almofadas térmicas do emissor de isofrequência

Ultra Low Volatility Of Siloxane Silicone Thermally Conductive Gap Filler Pads For Central Control Screen

Company Profile

Ziitek Technology Company is dedicated to providing a comprehensive range of thermal management products and services to meet various demand scenarios. Ziitek Technology offers prompt and flexible services. Our thermal conductive materials are widely used in the fields of new energy, electronic appliances, transportation, industry, healthcare, communication, etc. Ziitek has obtained ISO9001, ISO14001 and IECQ certifications, which indicate our commitment to producing high-quality products and adopting excellent management methods. Our products comply with RoHS, REACH and UL standards, ensuring safety and reliability.

Products description

The TIF^®100L 2050-06 eries is a thermal pad with ultra-lowsiliconoxygen volatilization, designed specifically for optical and high-precision applications. Its soft and elastic material can fill the uneven gaps between heating elements and heat sinks or metal bases, limprove thermal conductivity efficiency,and effectively extend the life of electronic components. The silicone structure filled with ceramics not only has good thermal conductivity, but also has extremely low volatility of low molecular weight siloxanes, which can significantly reduce the risk of internal contamination in optical devices.

Features

>Ultra low volatility of siloxane
>Good thermal conductivity
>Self adhesive without the need for extermal surface adhesive
>Highly compressible,easy to install and operate
>Good insulation performance

Applications

>Embedded Motherboard
>Industrial visual inspection equipment
>Graphics card cooling module
>Charging pile power module

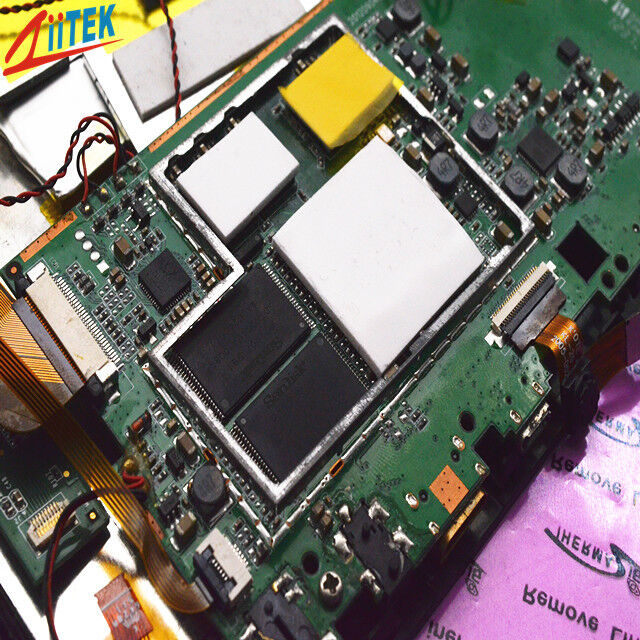

>Central control screen

Typical Properties of TIF^®100L 2050-06 Series
Property	Value		Test method
Color	White		Visual
Construction & Compostion	Ceramic filled silicone elastomer		******
Density(g/cm³)	2.9		ASTM D792
Thickness Range(inch/mm)	0.010~0.020	0.030~0.200	ASTM D374
	(0.25~0.50)	(0.75~5.00)
Hardness	65 Shore 00	50 Shore 00	ASTM 2240
Recommended Operating Temperature	-40 to 200℃		******
Breakdown Voltage(V/mm)	≥5500		ASTM D149
Dielectric Constant @1MHz	7.0		ASTM D150
Volume Resistivity(Ohm-meter)	＞1.0X10¹²		ASTM D257
Flame rating	V-0		UL 94 (E331100)
Thermal conductivity(W/m-K)	2.0		ASTM D5470
	2.0		ISO22007

Product Specifications

Standard Thickness:0.010" (0.25 mm)～0.200" (5.00 mm),with increments of 0.010" (0.25 mm).
Standard Size: 16"×16" (406 mmx406 mm)

The TIF^® series is available in custom shapes andvarious forms.
For other thicknesses or more information, please contact us.

Our services

Online-service : 12 hours , Inquiry reply within fastest.

Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).

Well-trained & experienced staff are to answer all your inquiries in English of course.

Standard Export Carton Or Marked With Customer's Information Or Customized.

Provide free samples

After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.

we will help you to deal with it and give you satisfactory solution.

FAQ

Q:How can we get detailed price list?

A:Please offer us detailed information of the product such as Size(length,width,thickness),color,specific packaging requirements and purchasing quantity.

Q: What thermal conductivity test method was used to achieve the values given on the data sheets?

A: A test fixture is utilized that meets the specifications outlined in ASTM D5470.

Q: Is GAP PAD offered with an adhesive?

A: Currently, Most of thermal gap pad surface has double side natural inherent tack,Non-stick surface can also be treated according to customer's requirements.
