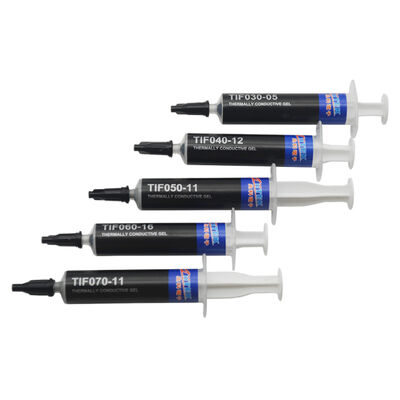

Name: Excellent Thermal Conductivity 8.0W Thermal Conductive Gel For Telecom Industry
Brand: Dongguan Ziitek Electronical Material and Technology Ltd.
SKU: TIF080-11
Price: 49.10 USD
Availability: InStock

Casa Produtos Gel condutor térmico

Excellent Thermal Conductivity 8.0W Thermal Conductive Gel For Telecom Industry

Detalhes do produto:

Lugar de origem:	China
Marca:	Ziitek
Certificação:	UL
Número do modelo:	TIF080-11

Condições de Pagamento e Envio:

Quantidade de ordem mínima:	1000 tubos
Preço:	0.1-100USD/KG
Detalhes da embalagem:	30 cc/peça, 50 cc/peça
Tempo de entrega:	3-8 dias úteis
Termos de pagamento:	T/T
Habilidade da fonte:	10000KG/Month

Contato

Descrição de produto detalhada

Nome dos produtos:	Gel condutor térmico excelente da condutibilidade térmica 8.0W para a indústria das telecomunicações	Aplicativo:	Indústria das telecomunicações
Cor:	cinza	Material:	Materiais cerâmicos de silício
Temperatura operacional recomendada (℃):	-40-200 ℃	Condutividade térmica:	8.0W/m-K
Palavra-chave:	Gel condutor térmico	Densidade:	3,4 g/cm³

Excellent Thermal Conductivity 8.0W Thermal Conductive Gel For Telecom Industry

TIF^®080-11 is a soft silicone gel-based gap filler pad, formulated with a special blend of fillers to provide both excellent thermal conductivity and superior softness. Compared to conventional thermal greases, it has a higher viscosity, which efectively prevents filler separation from the silicone matrix and reduces filler migration, helping maintain consistent thermal performance. It is applied in a similar manner to thermal grease and is suitable for commercial dispensing or automated equipment.

Feature

> Excellent thermal conductivity: 8.0W/mK

> Soft, very low compression

> Low thermal inpedance

> Operate automaticly
> Proven long-term reliability

Application

> Heat-sink & frame
> LED backlight module,LED lighting

> High speed hardware driver
> Micro heat pipe
> Vihicel enginee controler

> Telecom industry
> Semiconductor automatic laboratory equipment

TIF^®080-11 Typical Properties
Property	Value	Test method
Color	Gray	Visual
Construction & Composition	Ceramic filled silicon material	*****
Flow Rate(g/min)	40	Ziitek Test Methbod
Flow Rate(g/min)	40	(30cc syringe/ 2.5mm or rifice/90 psi)
Density(g/cm³)	3.4	ASTM D792
Thermal conductivity(W/mK)	8.0	ASTM D5470
Thermal Impedance @10Psi(℃-in²/W)	0.065	ASTM D5470
Thermal Impedance @50Psi(℃-in²/W)	0.060	ASTM D5470
Recommended Operating temp	-40~200℃	*****
Breakdown Voltage(V/mm)	≥4000	ASTM D149
Bond line Thickness (mm)	0.2	Ziitek Test Method
Shelf life	12 months	****
Flame Rating	V-0	UL 94

Packing details

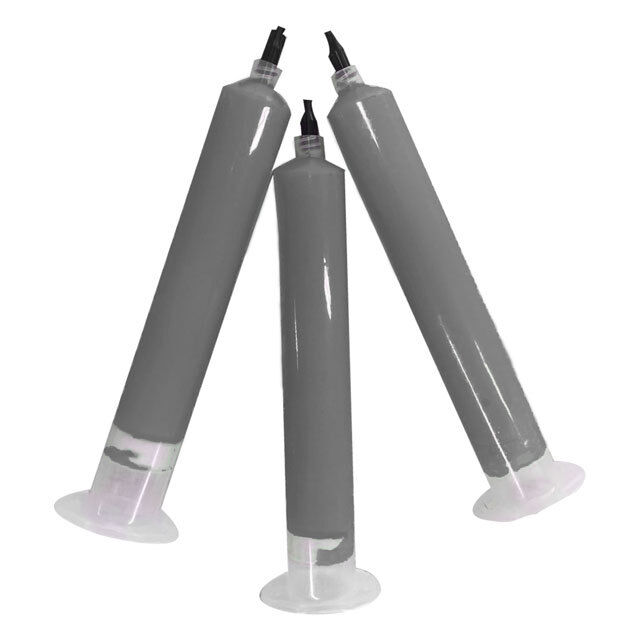

30 cc/pc, 50cc/pcs, 300 cc/pc ,

Custom packaging available for automation use ,Please contact us for confirming.
If you want to know our thermal products, please visit our website.

Company Profile

Ziitek company is a high-tech enterprise dedicated to the R&D, manufacture and sales of thermal interface materials (TIMs). With rich experience in this field, we provide the latest, most effective one-step thermal management solutions. Our facility includes advanced production equipment, full test equipment, and fully automatic coating production lines capable of manufacturing high performance thermal products including:

Thermal gap pad

Thermal graphite sheet/film

Thermal double-sided tape

Thermal insulation pad

Thermal grease

Phase change material

Thermal gel

All products are compliant with UL94 V-0, SGS and ROHS standards.

Certifications: ISO9001:2015, ISO14001:2004, IATF16949:2016, IECQ QC 080000:2017, UL

Q&A

Q: Are you trading company or manufacturer ?

A: We are manufacturer in China

Q: What's the thermal conductivity test method given on the data sheet ?

A: All the data in the sheet are actual tested.Hot Disk and ASTM D5470 are utilized to test the thermal conductivity.

Q: How to find a right thermal conductivity for my applications

A: It depends on the watts of power source , ability of heat dissipation. Please tell us your detailed applications and the power, so we can recommend most suitable thermal conductive materials.

Q: Do you accept custom orders ?

A:Yes , welcome to custom orders. Our custom elements including dimension , shape , color and coated on side or two sides adhesive or coated fiberglass. If you want to place a custom order , pls kindly offer a drawing or leave your custom order information .
