Name: 4.0W/MK High Thermal Conductive Two Component Potting Silicone Adhesive For Electronic Industry Heat Dissipation
Brand: Dongguan Ziitek Electronical Material and Technology Ltd.
SKU: TIG680-40AB
Price: 50.00 USD
Availability: InStock

Casa Produtos Esparadrapo condutor térmico do silicone

4.0W/MK High Thermal Conductive Two Component Potting Silicone Adhesive For Electronic Industry Heat Dissipation

Detalhes do produto:

Lugar de origem:	China
Marca:	Ziitek
Certificação:	RoHS
Número do modelo:	TIG680-40AB

Condições de Pagamento e Envio:

Quantidade de ordem mínima:	10kg
Preço:	1-100USD/KG
Detalhes da embalagem:	1kg/can
Tempo de entrega:	3-8 dias de trabalho
Termos de pagamento:	T/T
Habilidade da fonte:	10000KG/Month

Contato

Descrição de produto detalhada

Nome dos produtos:	esparadrapo dois componentes condutores térmicos altos do silicone do potting 4.0W/MK para a dissipa	Material:	Adesivo de silicone
cor:	cinza	Dureza:	25 (costa A)
Aplicativo:	Dissipação de calor da indústria eletrônica	Condutividade Térmica:	4.0W/mK
Palavra-chave:	Composto de envasamento condutor térmico

4.0W/MK High Thermal Conductive Two Component Potting Silicone Adhesive For Electronic Industry Heat Dissipation

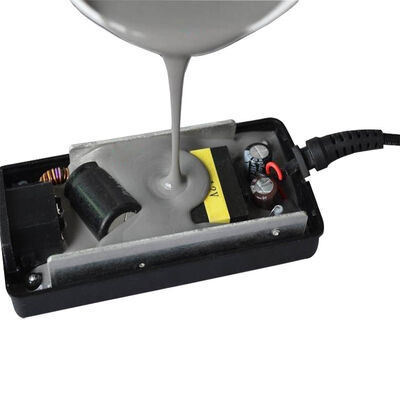

TIG^®680-40AB Series is a two-component high thermal conductivity silicone sealant with room temperature curing, long working time, and flame retardant properties. This product is particularly suitable for sealing capacitors and small electronic devices. Its excellent flexibility properties enable it to provide excellent cushioning protection for coating materials. The low viscosity characteristic enables the thermal conductive sealant to cover the surface more comprehensively, greatly improving the heat transfer efficiency of the heating element or the entire printed circuit board to the metal shell or heat dissipation plate,thereby improving the performance and service life of electronic components.

Feature

> Good thermal conductivity: 2.0W/mK
> Good insulation performance
> Good elasticity
> Lower shrinkage
> Low viscosity,easy gas emissions
> Good solvent resistance and waterproof performance
> Longer working hours
> Excellent high and low temperature resistance
> No odor release during the curing process

Application

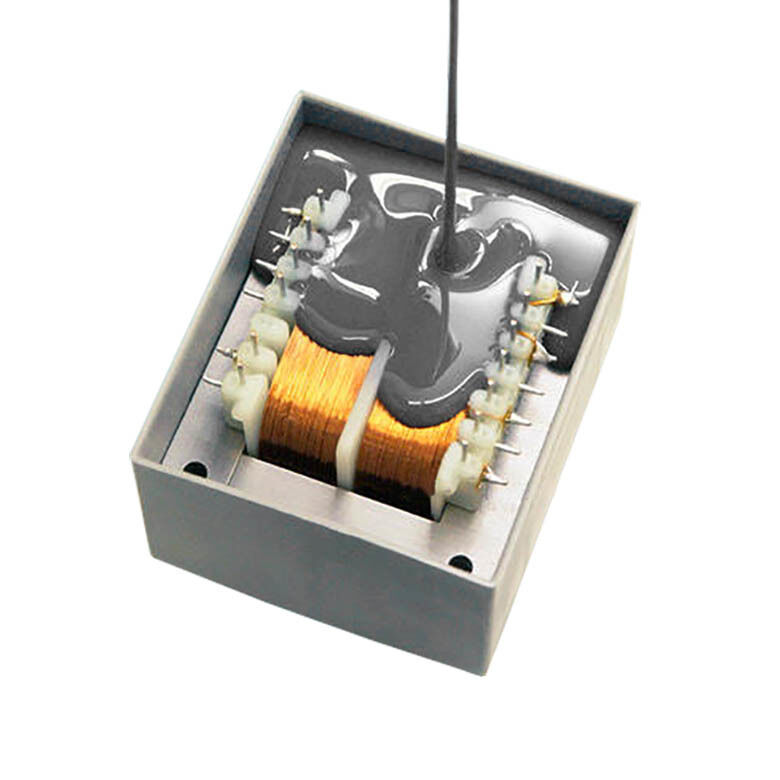

> Industrial control,transfomer,coil, amplifier, high voltage package,relay, high current junction box,etc
> Heat sink assembly, thermal sensor potting,thermal conductive product potting
> Heat conduction between the battery cell and the cold tube
> LED and power drive potting

Typical Properties of TIG^®680-40AB Series
Material Properties (Before Curing)
Property	Numerical	Test Method
Color/Part A	White	Visual
Color/Part B	Gray	Visual
Part A Viscosity (mPa.s)	16000	GB/T 10247
Part B Viscosity (mPa.s)	23000	GB/T 10247
Mix Ratio	1:1	Ziitek Test Method
Shelf life	6 months(Unopened)	Ziitek Test Method
Cure Schedule
Pot Life @25℃	30~45 mins	Ziitek Test Method
Cure @70℃	20~30 mins	Ziitek Test Method
Cure Material Properties
Color	Gray	Visual
Hardness (Shore A)	25	ASTM D2240
Density (g/cm³)	3.15	ASTM D792
Recommended Operating temperature (℃)	-45 ~200	*****
Flame Rating	V-0	UL 94
Thermal Conductivity (W/mK)	4.0	ASTM D5470
Breakdown Voltage (V/mm)	≥10000	ASTM D149
Dielectric Constant @1MHz	6.0~8.0	ASTM D150
Volume Resistivity (Ohm·cm)	3.0x10¹³	ASTM D257
