Gray High-Strength 1.5W/MK High-Temperature Resistant Thermal Silicon Insulator Pad For Battery

Gray High-Strength 1.5W/MK High-Temperature Resistant Thermal Silicon Insulator Pad For Battery

Detalhes do produto:
Lugar de origem: CHINA
Marca: Ziitek
Certificação: UL & RoHS
Número do modelo: TIF100-02E
Condições de Pagamento e Envio:
Quantidade de ordem mínima: 1000pcs
Preço: 0.1-10 USD/PCS
Detalhes da embalagem: 24*13*12cm de caixas
Tempo de entrega: 3-5 dias de trabalho
Termos de pagamento: T/T.
Habilidade da fonte: 1000000 PCs/mês
Contato
Descrição de produto detalhada
Nome dos produtos: Cinza de alta resistência de alta resistência 1,5W/MK Alta temperatura resistente a silício Térmica Faixa de espessura: 0,020 "~ 0,200" (0,5 mm ~ 5,0 mm)
Aplicativo: Bateria Cor: Cinza
Constante dielétrica: 4,7 megahertz Condutividade térmica: 1,5 W/m-K
Tensão de quebra dielétrica: > 5500 Vac Palavras -chave: Almofada de isolador de silício térmico
Classificação de incêndio: 94 V0

Gray High-Strength 1.5W/MK High-Temperature Resistant Thermal Silicon Insulator Pad For Battery



Company Profile



Ziitek Electronic Material and Technology Ltd. is dedicated to developing composite thermal solution and manufacturing superior thermal interface materials for competitive market. Our vast experience allows us to assist our customers best in thermal engineering field.We serve customers with customized products, full product lines and flexible production, which makes us be the best and reliable partner of you. Let's make your design more perfect!

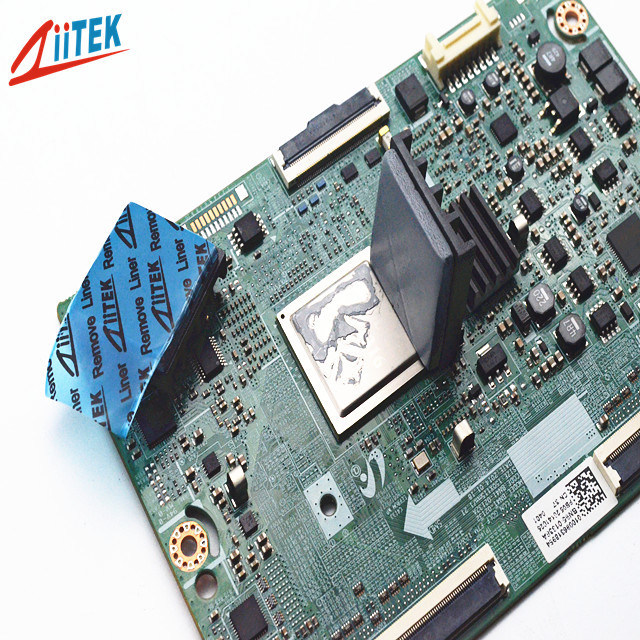

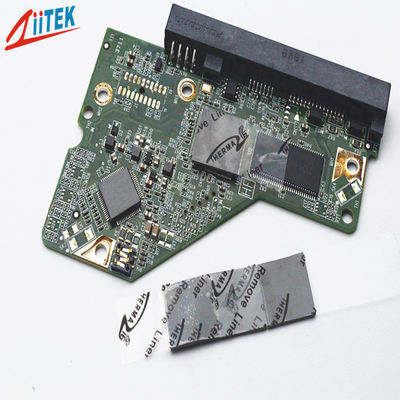

The TIF®100-02E Series is a silicone based, thermally conductive gap pad. Its unreinforced construction allows additional compliancy. This product has low hardness is conformable and is electrically isolating. The low modulus characteristic of the product offers optimal thermal performance with the ease of handling.



Features


> Good thermal conductive: 1.5W/mK
> Moldability for complex parts
> Soft and compressible for low stress applications
> Naturally tacky needing no further adhesive coating
> Outstanding thermal performance
> High tack surface reduces contact resistance
> RoHS compliant


Applications


> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)
> CPU

> Display card
> Mainboard/mother board
> Notebook

Typical Properties of TIF®100-02E Series
Property Value Test method
Color Gray ******
Construction &Compostion Ceramic filled silicone elastomer ******
Thickness range 0.020"(0.5mm)~0.200"(5.0mm) ASTM D374
Specific Gravity 2.3g/cc ASTM D297
Hardness 35 Shore 00 ASTM 2240
Continuos Use Temp -45 to 200℃ ******
Dielectric Breakdown Voltage > 5500 VAC ASTM D149
Dielectric Constant 4.7 MHz ASTM D150
Volume Resistivity 1.0 X1012 Ohm-meter ASTM D257
Flame rating 94 V0 UL E331100
Thermal conductivity 1.5 W/m-K ASTM D5470


Product Specification

Product Thicknesses: 0.020-inch to 0.200-inch (0.5mm to 5.0mm)
Product Sizes:8" x 16"(203mm x406mm)
Individual die cut shapes and custom thickness can be supplied, Please contact us for comfirming.



Gray High-Strength 1.5W/MK High-Temperature Resistant Thermal Silicon Insulator Pad For Battery 0

Packaging Details & Lead time



The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized



Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated



Ziitek Culture



Quality :

Do it right the first time, total quality control

Effectiveness:

Work precisely and thoroughly for effectiveness

Service:

Quick response, On time delivery and Excellent service

Team work:

Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.



FAQ:



Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.



Q: How long is your delivery time?

A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.



Q: Do you provide samples ? is it free or extra cost?

A: Yes, we could offer samples free of charge.
