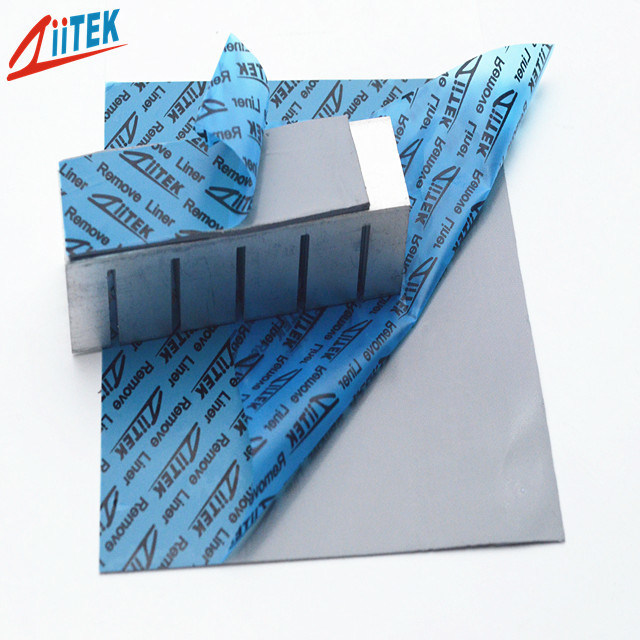

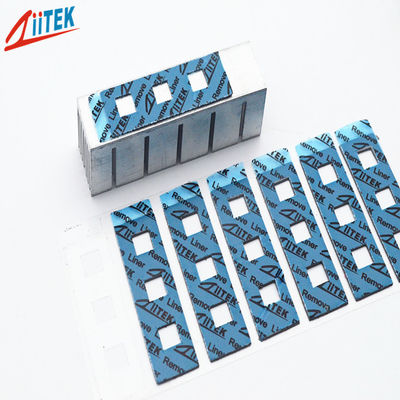

Gray Laptop Silicone Thermal Pad For Electronics Cooling

Gray Laptop Silicone Thermal Pad For Electronics Cooling

Detalhes do produto:
Lugar de origem: CHINA
Marca: Ziitek
Certificação: UL & RoHS
Número do modelo: TIF100-02U
Condições de Pagamento e Envio:
Quantidade de ordem mínima: 1000pcs
Preço: 0.1-10 USD/PCS
Detalhes da embalagem: 24*13*12cm de caixas
Tempo de entrega: 3-5 dias de trabalho
Termos de pagamento: T/T.
Habilidade da fonte: 1000000 PCs/mês
Contato
Descrição de produto detalhada
Nome dos produtos: Almofada térmica de silicone de laptop cinza para resfriamento eletrônico Palavras -chave: almofada térmica do silicone
Faixa de espessura: 0,020 "~ 0,200" (0,5 mm ~ 5,0 mm) Cor: Cinza
Constante dielétrica: 3,5 MHz Condutividade térmica: 1,5 W/m-K
Tensão de quebra dielétrica: > 5500 Vac Classificação de incêndio: 94 V0
Aplicativo: Resfriamento eletrônico

Gray Laptop Silicone Thermal Pad For Electronics Cooling



Company Profile



Ziitek Electronic Material and Technology Ltd. is dedicated to developing composite thermal solution and manufacturing superior thermal interface materials for competitive market. Our vast experience allows us to assist our customers best in thermal engineering field.We serve customers with customized products, full product lines and flexible production, which makes us be the best and reliable partner of you. Let's make your design more perfect!



The TIF®100-02U Series use a special process, with silicone as the base material, adding thermal conductive powder and flame retardant together to make the mixture to become thermal interface material. This is effective in lower the thermal resistance between the heat source and the heat sink.



Features


> Good thermal conductive: 1.5W/mK
> Moldability for complex parts
> Soft and compressible for low stress applications
> Naturally tacky needing no further adhesive coating
> Available in varies thicknesses
> Broad range of hardnesses available
> Moldability for complex parts


Applications


> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)
> CPU



Typical Properties of TIF®100-02U Series
Property Value Test method
Color Gray ******
Construction &Compostion Ceramic filled silicone elastomer ******
Thickness range ≤ 0.50mm 0.75mm~5.0mm ASTM D374
Specific Gravity 2.2g/cc ASTM D297
Hardness 35 Shore 00 27 Shore 00 ASTM 2240
Continuos Use Temp -45 to 200℃ ******
Dielectric Breakdown Voltage > 5500 VAC ASTM D149
Dielectric Constant 3.5 MHz ASTM D150
Volume Resistivity 1.0 X1012 Ohm-meter ASTM D257
Flame rating 94 V0 UL E331100
Thermal conductivity 1.5 W/m-K ASTM D5470


Product Specification

Product Thicknesses: 0.020-inch to 0.200-inch (0.5mm to 5.0mm)
Product Sizes:8" x 16"(203mm x406mm)
Individual die cut shapes and custom thickness can be supplied, Please contact us for comfirming.



Gray Laptop Silicone Thermal Pad For Electronics Cooling 0

Packaging Details & Lead time



The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized



Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated



Why Choose us ?



1.Our value message is'' Do it right the First time, total quality control''.

2.Our core competencies is thermal conductive interface materials.

3.Competitive advantage products.

4.Condidentiality agreement Bussiness Secrect Contract.

5.Free sample offer.

6.Quality assurance contract.



FAQ:



Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.



Q:How can we get detailed price list?

A:Please offer us detailed information of the product such as Size(length,width,thickness),color,specific packaging requirements and purchasing quantity.



Q:Do big buyers have promotional prices?

A: Yes, if you are a big buyer in a certain area, Ziitek will provide you with promotional prices, which will help you start your business here. Buyers with long-term cooperation will have better prices.
