Name: 5.0W High Quality Factory Wholesale Customized Silicone Thermal Pad Thermal Gap Filler Insulation Sheet For LED CPU GPU MOS
Brand: Dongguan Ziitek Electronical Material and Technology Ltd.
SKU: Série TIF800US
Price: 4.10 USD
Availability: InStock

Casa Produtos almofada do thermal do silicone

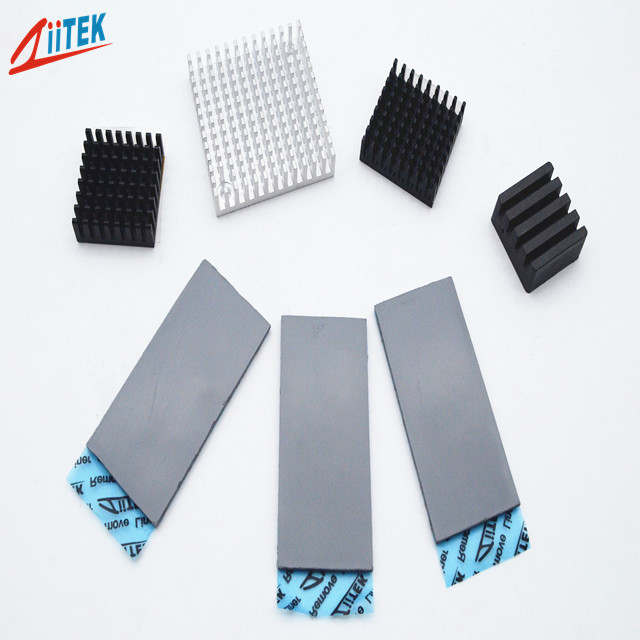

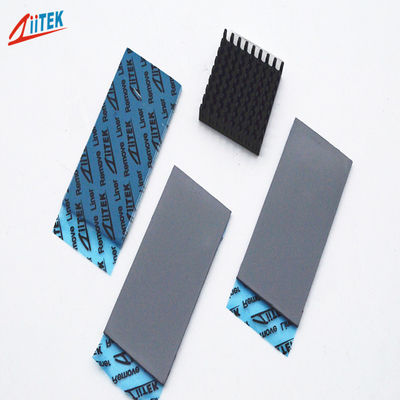

5.0W High Quality Factory Wholesale Customized Silicone Thermal Pad Thermal Gap Filler Insulation Sheet For LED CPU GPU MOS

Detalhes do produto:

Lugar de origem:	CHINA
Marca:	Ziitek
Certificação:	UL & RoHS
Número do modelo:	Série TIF800US

Condições de Pagamento e Envio:

Quantidade de ordem mínima:	1000pcs
Preço:	0.1-10 USD/PCS
Detalhes da embalagem:	241312 caixas
Tempo de entrega:	3-5 dias de trabalho
Termos de pagamento:	T/T.
Habilidade da fonte:	1000000 PCs/mês

Contato

Descrição de produto detalhada

Nome do produto:	5.0W de alta qualidade de fábrica de fábrica de fábrica de silicone personalizado folha de isolament	Amostra:	Amostra grátis
Grossura:	0,020 "(0,500) ~ 0,200" (5,0 mm)	Gravidade específica:	3.4 g/cc
Aplicativo:	LED CPU GPU MOS Transferência de calor	Tensão de quebra dielétrica:	≥5000 VCA
Cor:	Cinza	Palavras -chave:	almofada térmica do emissor de isofrequência
Dureza:	20 costa 00	Condutividade térmica:	5.0W/m-k

5.0W High Quality Factory Wholesale Customized Silicone Thermal Pad Thermal Gap Filler Insulation Sheet For LED CPU GPU MOS

Products description

The TIF^®800US Series thermally conductive interface materials are applied to fill the air gaps between the heating elements and the heat dissipation fins or the metal base.Their flexibility and elasticity make them suited to coat very uneven surfaces. Heat can transmit to the metal housing or dissipation plate from the heating elements or even the entire PCB, which effectively enhances the efficiency and life-time of the heat-generating electronic components.

Features

> Good thermal conductive: 5.0W/mK
> Moldability for complex parts
> Soft and compressible for low stress applications
> Naturally tacky needing no further adhesive coating

> RoHS compliant
> UL recognized

Applications

> LED TV / LED Lit Lamps
> Heat pipe thermal solutions
> Mass storage devices
>Automotive electronics
> Memory Modules
> routers
> LED Panel Light
> LED floor light
> Routers
> Medical Devices
> Auditioning electronic products
> unmanned aerial vehicle(UAV)

Typical Properties of TIF^®800US Series
Color	Gray	Visual
Construction & Compostion	Ceramic filled silicone elastomer	******
Specific Gravity	3.4g/cc	ASTM D297
Thickness range	0.020"(0.500)~0.200"(5.0mm)	ASTM D374
Hardness	20 Shore 00	ASTM 2240
Operating temp	-40 to 200℃	******
Dielectric Breakdown Voltage	≥5000 VAC	ASTM D149
Dielectric Constant @1MHz	4.5	ASTM D150
Volume Resistivity	≥ 1.0X10¹² Ohm-meter	ASTM D257
Flame rating	94 V0	UL E331100
Outgassing (TML)	0.55%	ASTM E595
Thermal conductivity	5.0 W/m-K	ASTM D5470
Thermal conductivity	5.0 W/m-K	ISO 22007-2

Products specification

Product Thicknesses: 0.020-inch to 0.200-inch (0.5mm to 5.0mm) with increments of 0.01 inch(0.25mm).

Product Sizes: 8" x 16"(203mm x406mm)Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment), DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).
The TIF series is available in custom shapes and various forms. For other thicknesses or more information, please contact us.

5.0W High Quality Factory Wholesale Customized Silicone Thermal Pad Thermal Gap Filler Insulation Sheet For LED CPU GPU MOS 0

Company profile

Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.

Certifications:

ISO9001:2015

ISO14001: 2004 IATF16949:2016

IECQ QC 080000:2017

Ziitek Culture

Quality :

Do it right the first time, total quality control

Effectiveness:

Work precisely and thoroughly for effectiveness

Service:

Quick response, On time delivery and Excellent service

Team work:

Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.
