| Lugar de origem: | China |
| Marca: | Ziitek |
| Certificação: | UL & RoHS |
| Número do modelo: | TIF500-65-11US |
| Quantidade de ordem mínima: | 1000 unidades |
|---|---|
| Preço: | 0.1-10 USD/PCS |
| Detalhes da embalagem: | caixas de 24*13*12cm |
| Tempo de entrega: | 3-5 dias úteis |
| Termos de pagamento: | T/T |
| Habilidade da fonte: | 1000000 PCs/mês |
| Nome dos produtos: | Almofada de silicone resistente ao calor de condutividade térmica altamente eficiente 6.5w/mk para d | Amostra: | Amostra grátis |
|---|---|---|---|
| Tensão de ruptura (V/mm): | ≥5500 | Faixa de espessura: | 0,010"~0,200"(0,25mm~5,0mm) |
| Palavras-chave: | Pad térmico do CPU | Constante dielétrica @ 1MHz: | 7,0 MHz |
| Classificação de fogo: | 94 V0 | Cor: | Cinza escuro |
| Condutividade térmica: | 6.5W/m-K | Aplicativo: | Dissipador de calor para laptop, CPU, GPU, SSD, IC, refrigerador LED |

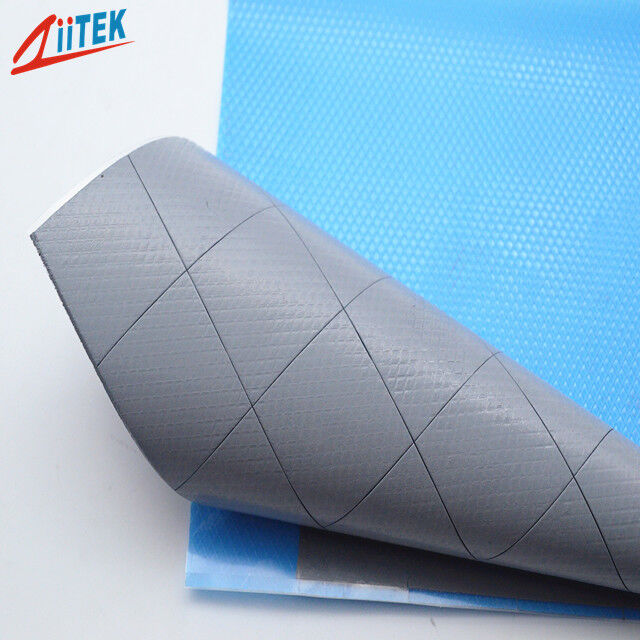

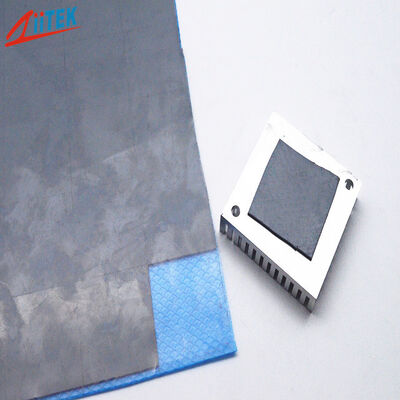

Highly Efficient Thermal Conductivity 6.5W/MK Heat Resistant Silicone Pad For Laptop Heatsink, CPU, GPU, SSD, IC, LED Cooler
Company Profile
Ziitek Electronic Material and Technology Ltd. is dedicated to developing composite thermal solution and manufacturing superior thermal interface materials for competitive market. Our vast experience allows us to assist our customers best in thermal engineering field.We serve customers with customized products, full product lines and flexible production, which makes us be the best and reliable partner of you. Let's make your design more perfect!
The TIF®500-65-11US Series is an ultra-soft thermal interface material designed specifically to protect precision components that are extremely sensitive to mechanical stress. This product combines high thermal conductivity with exceptional gel-level softness, achieving a perfectly low-stress fit. It is suitable for addressing issues such as large tolerances, uneven surfaces, and the susceptibility of precision components to mechanical damage in high-precision assemblies.
Features
> Good thermal conductive
> Moldability for complex parts
> Soft and compressible for low stress applications
> Naturally tacky needing no further adhesive coating
> Available in varies thicknesses
Applications
> Routers
> Medical Devices
> Auditioning electronic products
> Unmanned aerial vehicle(UAV)
> Photovoltaic
> Signal communication
> New energy vehicle
> Motherboard chip
> Radiator
> AI Processors AI Servers
> Power tools
> Network communication products
> Electric vehicle batteries
> Computer CPU/GPU Cooling
> New energy vehicle power systems
| Typical Properties of TIF®500-65-11US Series | |||
| Property | Value | Test method | |
| Color | Dark Gray | Visual | |
| Construction & Compostion | Ceramic filled silicone elastomer | ****** | |
| Density(g/cm³) | 3.45 | ASTM D792 | |
| Thickness Range(inch/mm) | 0.010~0.020 | 0.030~0.200 | ASTM D374 |
| (0.25~0.50) | (0.75~5.00) | ||
| Hardness | 65 Shore 00 | 20 Shore 00 | ASTM 2240 |
| Continuos Use Temp | -40 to 200℃ | ****** | |
| Breakdown Voltage(V/mm) | ≥ 5500 | ASTM D149 | |
| Dielectric Constant | 7.0 MHz | ASTM D150 | |
| Volume Resistivity | >1.0X1012 Ohm-meter | ASTM D257 | |
| Thermal Conductivity (W/m-K) | 6.5 | ASTM D5470 | |
| 6.5 | ISO22007 | ||
| Fire rating | V-0 | UL 94 (E331100) | |
![]()
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
