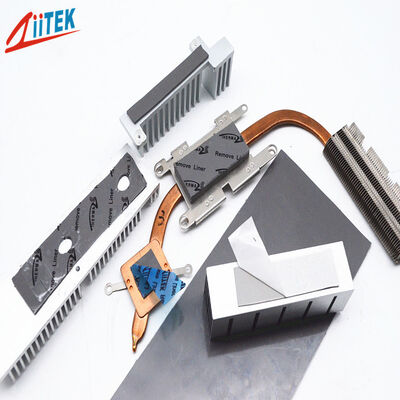

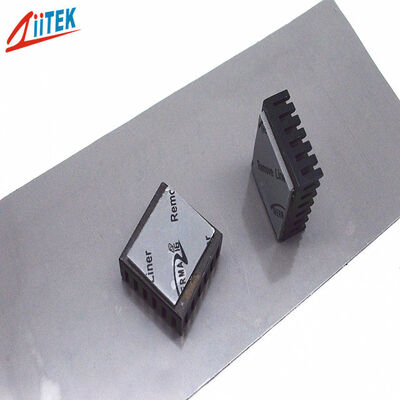

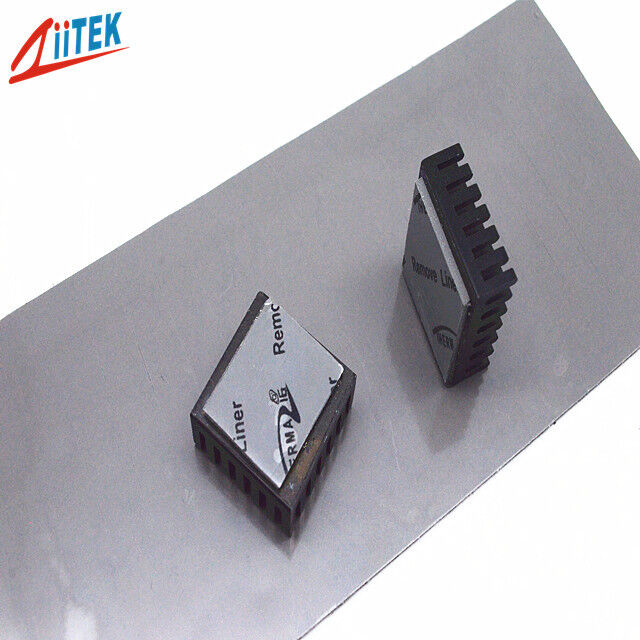

Thermal GAP PAD Materials Thermally Gap Pad For Computer CPU GPU Cooling
Company Profile
Dongguan Ziitek Electronic Material Technology Co., Ltd. was established in 2006. Is a high-tech enterprise specializing in the research, development, production and sales of thermal interface materials. We mainly produce: heat-conducting joint filler, low melting point thermal interface materials, heat-conducting insulator, heat-conducting adhesive tape, heat-conducting interface pad and heat-conducting grease, heat-conducting plastic, silicone rubber, silicone rubber foam, etc. We adhere to the business philosophy of "survival by quality, development by quality", and continue to provide the most efficient and best service for new and old customers with excellent quality in the spirit of rigor, pragmatism and innovation.
Certifications:
ISO9001:2015
ISO14001: 2004 IATF16949:2016
IECQ QC 080000:2017
UL
Product discription
TIF®500-50-11US Series is an ultra soft thermal interface material designed specifically to protect precision components that are extremely sensitive to mechanical stress. This product combines high thermal conductivity with extreme gel grade flexibility to achieve a perfect fit with low stress. It is suitable for solving problems such as large tolerances,uneven surfaces, and susceptibility of precision components to mechanical damage in high-precision assembly.
Features:
> High thermal conductivity: 5.0W/mK
> Good Flexibility And Fillability
> Self-adhesive without the need for additional surface adhesives
> Good insulation performance
> Available in varies thicknesses
> Ultra soft and highly compliant
Applications:
> Power tools
> Network communication products
> Electric vehicle batteries
> Computer CPU/GPU Cooling
> New energy vehicle power systems
> Display card
> Mainboard/mother board
> Notebook
> Power supply
> Routers
> Medical Devices
> Auditioning electronic products
> unmanned aerial vehicle(UAV)
> Photovoltaic
> Signal communication
> Motherboard chip
> Radiator
| Typical Properties of TIF®500-50-11US Series |
| Property |
Value |
Test method |
| Color |
Dark gray |
Visual |
| Construction & Compostion |
Ceramic filled silicone elastomer |
****** |
| Density(g/cm³) |
3.2 |
ASTM D792 |
| Thickness Range(inch/mm) |
0.010~0.020 |
0.030~0.200 |
ASTM D374 |
| (0.25~0.50) |
(0.75~5.0) |
| Hardness |
65 Shore 00 |
20 Shore 00 |
ASTM 2240 |
| Recommended Operating Temperature |
-40 to 200℃ |
****** |
| Breakdown Voltage(V/mm) |
≥5500 |
ASTM D149 |
| Dielectric Constant |
6.0 MHz |
ASTM D150 |
| Volume Resistivity |
＞1.0X1012 Ohm-meter |
ASTM D257 |
| Flame rating |
V-0 |
UL 94 (E331100) |
| Thermal conductivity |
5.0 W/m-K |
ASTM D5470 |
| 5.0 W/m-K |
ISO22007 |
Product Specifications
Standard Thickness: 0.010" (0.25 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size: 16" X16" (406 mm x 406 mm)
Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).
The TIF® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
Our services
Online-service : 12 hours , Inquiry reply within fastest.
Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).
Well-trained & experienced staff are to answer all your inquiries in English of course.
Standard Export Carton Or Marked With Customer's Information Or Customized.
Provide free samples
After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.
we will help you to deal with it and give you satisfactory solution.
FAQ:
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China.
Q: Is GAP PAD offered with an adhesive?
A: Currently, Most of thermal gap pad surface has double side natural inherent tack,Non-stick surface can also be treated according to customer's requirements.
Q:Is there promotion price for big buyer?
A:Yes, we do have promotion price for big buyer. Please send us email for inquiry.
Q: What thermal conductivity test method was used to achieve the values given on the data sheets?
A: A test fixture is utilized that meets the specifications outlined in ASTM D5470.
