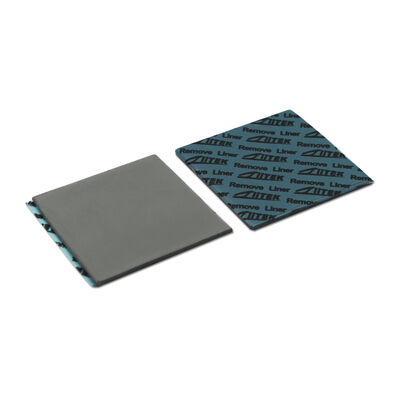

Name: 5.0 W/MK Heat Transfer Thermal Silicone Gel Pad Soft Thermal Pad For AI Processors Cooling
Brand: Dongguan Ziitek Electronical Material and Technology Ltd.
SKU: TIF500-50-11U
Price: 4.10 USD
Availability: InStock

Casa Produtos almofada do thermal do silicone

5.0 W/MK Heat Transfer Thermal Silicone Gel Pad Soft Thermal Pad For AI Processors Cooling

Detalhes do produto:

Lugar de origem:	China
Marca:	Ziitek
Certificação:	UL & RoHS
Número do modelo:	TIF500-50-11U

Condições de Pagamento e Envio:

Quantidade de ordem mínima:	1000 PCS
Preço:	0.1-10 USD/PCS
Detalhes da embalagem:	241312cm de caixas
Tempo de entrega:	3-5 dias úteis
Termos de pagamento:	T/T
Habilidade da fonte:	1000000 PCs/mês

Contato

Descrição de produto detalhada

Nome dos produtos:	5,0 almofada térmica macia da almofada térmica do gel do silicone da transferência térmica de W/MK p	Cor:	Cinza escuro
Construção e Composição::	Elastômero de silicone preenchido com cerâmica	Dureza:	27 Shore 00
Aplicação:	Resfriamento de processadores AI	Densidade:	3,4 g/cm³
Condutividade térmica:	5.0W/m-k	Faixa de espessura:	0,25 ~ 5,0 mm /(0,010 ~ 0,20 polegadas)
Palavras-chave:	Almofada Térmica para Transferência de Calor

5.0 W/MK Heat Transfer Thermal Silicone Gel Pad Soft Thermal Pad For AI Processors Cooling

Products Description

TIF^®500-50-11U Series is an ultra-soft thermal interface material designed specifically to protect precision components that are extremely sensitive to mechanical stress. This product combines high thermal conductivity with exceptional gel-level softness,achieving a perfectly low-stress fit. It is suitable for addressing issues such as large tolerances, uneven surfaces,and the susceptibility of precision components to mechanical damage in high-precision assemblies.

Features:

> High thermal conductivity
> Super soft and highly compliant
> Self-adhesive without the need for additional surface adhesives

> Good insulation performance
> Available in varies thicknesses
> Broad range of hardnesses available
> Outstanding thermal performance

Applications:

> Mass storage devices
> Automotive electronics
> Set top boxes
> Audio and video components
> IT infrastructure
> Power tools
> Network communication products
> Electric vehicle batteries
> Computer CPU/GPU Cooling
> New energy vehicle power systems

Typical Properties of TIF^®500-50-11U Series
Property	Value		Test method
Color	Dark Gray		Visual
Construction & Compostion	Ceramic filled silicone elastomer		******
Density(g/cm³)	3.4		ASTM D792
Thickness Range(inch/mm)	0.010~0.020	0.030~0.200	ASTM D374
	(0.25~0.5)	(0.75~5.0)
Hardness	65 Shore 00	27 Shore 00	ASTM 2240
Recommended Operating Temperature	-40 to 200℃		******
Breakdown Voltage(V/mm)	≥5500		ASTM D149
Dielectric Constant	7.0 MHz		ASTM D150
Volume Resistivity	＞1.0X10¹² Ohm-meter		ASTM D257
Flame rating	V-0		UL 94 (E331100)
Thermal conductivity	5.0 W/m-K		ASTM D5470
	5.0 W/m-K		ISO22007

5.0 W/MK Heat Transfer Thermal Silicone Gel Pad Soft Thermal Pad For AI Processors Cooling 0

Product Specifications

Standard Thickness: 0.010" (0.25 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size: 16"× 16" (406 mm×406 mm)

Component Codes:

Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).

The TIF series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.

Company Profile

Dongguan Ziitek Electronic Material Technology Co., Ltd. was established in 2006. Is a high-tech enterprise specializing in the research, development, production and sales of thermal interface materials. We mainly produce: heat-conducting joint filler, low melting point thermal interface materials, heat-conducting insulator, heat-conducting adhesive tape, heat-conducting interface pad and heat-conducting grease, heat-conducting plastic, silicone rubber, silicone rubber foam, etc. We adhere to the business philosophy of "survival by quality, development by quality", and continue to provide the most efficient and best service for new and old customers with excellent quality in the spirit of rigor, pragmatism and innovation.

Certifications:

ISO9001:2015

ISO14001: 2004 IATF16949:2016

IECQ QC 080000:2017

FAQ:

Q: Are you trading company or manufacturer ?

A: We are manufacturer in China

Q: What kind of packaging you offer?

A: During the packaging process, preventive measures will be taken by us to assure that the goods are in a good condition during storage and delivery.

Q:Do big buyers have promotional prices?

A: Yes, if you are a big buyer in a certain area, Ziitek will provide you with promotional prices, which will help you start your business here. Buyers with long-term cooperation will have better prices.
