Lugar de origem: | CHINA |
Marca: | Ziitek |
Certificação: | UL & RoHS |
Número do modelo: | Série TIF100-06U |
Quantidade de ordem mínima: | 1000pcs |
---|---|
Preço: | 0.1-10 USD/PCS |
Detalhes da embalagem: | 24*13*12cm de caixas |
Tempo de entrega: | 3-5 dias de trabalho |
Termos de pagamento: | T/T. |
Habilidade da fonte: | 1000000 PCs/mês |
Nome dos produtos: | Enchimento térmico de lacuna de silicone ultra macio usado em chassis ou outros componentes de dissi | Palavras -chave: | Enchimento térmico de lacuna de silicone |
---|---|---|---|
Amostra: | Amostra grátis | Cor: | Branco |
Classificação de incêndio: | 94 V0 | Faixa de espessura: | 0,020 "~ 0,200" (0,5 mm ~ 5,0 mm) |
Tensão de quebra dielétrica: | > 5500 Vac | Constante dielétrica: | 3,5MHz |
Condutividade térmica: | 1,5 W/m-K | Aplicativo: | Componentes Dissipação de Calor |

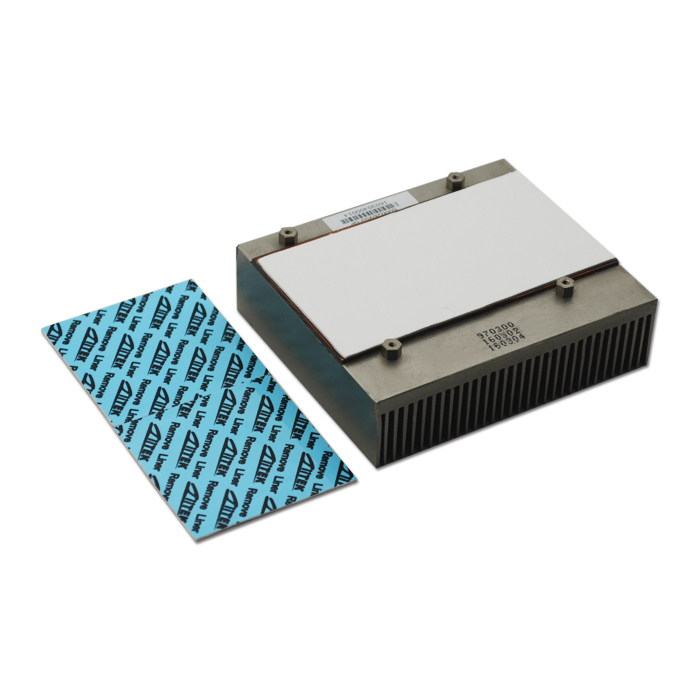

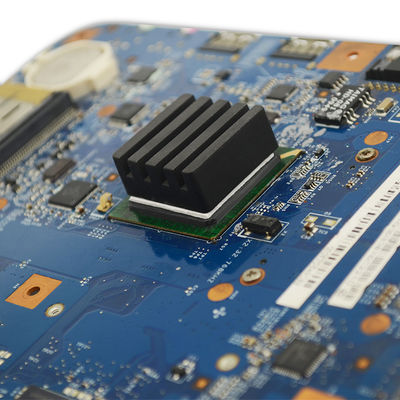

Ultra Soft Silicone Thermal Gap Filler Used In Chassis Or Other Heat Dissipation Components
Company Profile
Ziitek Electronic Material and Technology Ltd. provides product solutions to equipment product which generates too much heat affecting its high performance when using. Plus thermal products can control and manage heat to keep it cool to some extent.
Ziitek TIF®100-06U Series is a silicone based, thermally conductive gap pad. Its unreinforced construction allows additional compliancy. This product has low hardness is conformable and is electrically isolating. The low modulus characteristic of the product offers optimal thermal performance with the ease of handling.
Features
> Good thermal conductive: 1.5W/mK
> Moldability for complex parts
> Soft and compressible for low stress applications
> Naturally tacky needing no further adhesive coating
> Available in varies thicknesses
> Broad range of hardnesses available
Applications
> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)
> CPU
> Monitoring the Power Box
> AD-DC Power Adapters
> Rainproof LED Power
> Routers
> Medical Devices
> Auditioning electronic products
> Unmanned aerial vehicle(UAV)
Typical Properties of TIF®100-06U Series | |||
Property | Value | Test method | |
Color | White | ****** | |
Construction &Compostion | Ceramic filled silicone elastomer | ****** | |
Thickness range | 0.020"(0.5mm)~0.200"(5.0mm) | ASTM D374 | |
Specific Gravity | 2.2g/cc | ASTM D297 | |
Hardness | 27 Shore 00 | ASTM 2240 | |
Continuos Use Temp | -45 to 200℃ | ****** | |
Dielectric Breakdown Voltage | > 5500 VAC | ASTM D149 | |
Dielectric Constant | 3.5 MHz | ASTM D150 | |
Volume Resistivity | 1.0 X1012 Ohm-meter | ASTM D257 | |
Flame rating | 94 V0 | UL E331100 | |
Outgassing | 0.35% | ASTM E595 | |
Thermal conductivity | 1.5 W/m-K | ASTM D5470 |
Product Specification
Product Thicknesses: 0.020-inch to 0.200-inch (0.5mm to 5.0mm)
Product Sizes: 8" x 16"(203mm x406mm)
Individual die cut shapes and custom thickness can be supplied, Please contact us for comfirming.
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
Why Choose us ?
1.Our value message is'' Do it right the First time, total quality control''.
2.Our core competencies is thermal conductive interface materials.
3.Competitive advantage products.
4.Condidentiality agreement Bussiness Secrect Contract.
5.Free sample offer.
6.Quality assurance contract.
FAQ:
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China.
Q: How to find a right thermal conductivity for my applications
A: It depends on the watts of power source , ability of heat dissipation. Please tell us your detailed applications and the power, so we can recommend most suitable thermal conductive materials.
Q: Do you accept custom orders ?
A:Yes , welcome to custom orders. Our custom elements including dimension , shape , color and coated on side or two sides adhesive or coated fiberglass. If you want to place a custom order , pls kindly offer a drawing or leave your custom order information .
